Crawler excavator E324D 242-6867 Boom cylinder assy for mini Excavator parts

Crawler excavator E324D 242-6867 Boom cylinder assy for mini Excavator parts

List of spare parts

As the core executive component of excavators, hydraulic cylinders have developed various types according to different structural designs and work requirements, each with its unique performance characteristics and applicable scenarios. Understanding these different types of hydraulic cylinders and their characteristics is of great significance for the design, selection, operation, use, and maintenance of excavators. From simple single-stage hydraulic cylinders to complex multi-stage telescopic cylinders, from standard piston cylinders to special booster cylinders, the diversity of hydraulic technology provides flexible solutions for excavators to cope with various working conditions.

The most basic classification of hydraulic cylinders is based on their mode of action, mainly divided into two categories: single acting cylinders and double acting cylinders. The single acting oil cylinder only allows pressure oil to pass through one side of the piston, and the return stroke relies on gravity, spring force, or other external forces. The structure is simple but the function is limited. In excavators, single acting hydraulic cylinders are less commonly used and are mainly used for auxiliary functions or special devices. In contrast, the double acting oil cylinder can be filled with pressure oil on both sides of the piston, enabling bidirectional active control, precise action, and controllable output, making it the mainstream configuration of excavator working equipment.

Double acting oil cylinders can be further divided into single piston rod type and double piston rod type. The single piston rod cylinder (i.e. the piston has a rod on only one side) is the most commonly used form of excavator, characterized by unequal effective areas of the two chambers, resulting in asymmetric speed and output during extension and retraction 816. This asymmetry needs special consideration in excavator action planning, but it also provides more flexibility for system design. Double piston rod oil cylinder (with rods on both sides of the piston) has equal effective areas in both chambers, which can achieve symmetrical speed and output characteristics. However, its structure is relatively complex and it is less commonly used in excavators. It is mainly used in special occasions that require strict symmetrical movements.

FAQ:

1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.

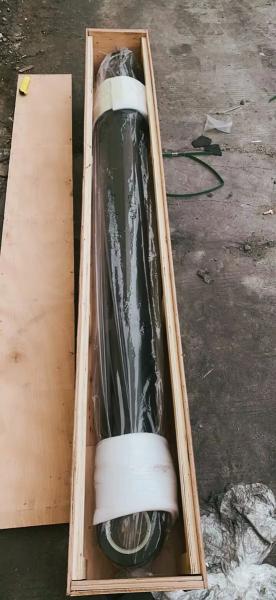

Crawler excavator E324D 242-6867 Boom cylinder assy for mini Excavator parts Images
